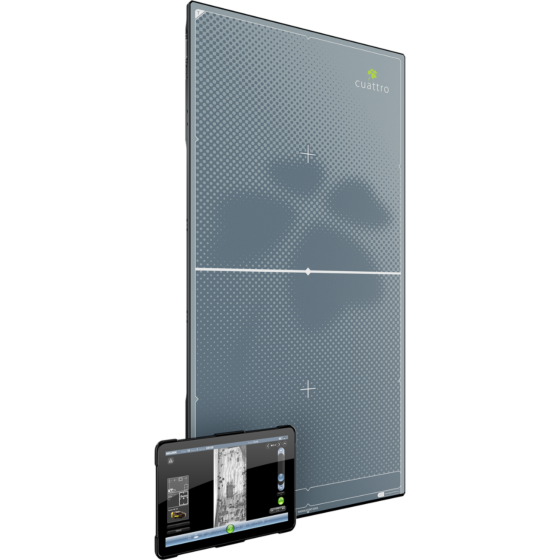

Cuattro Max - 17 in. x 34 in.

Cuattro Max^™ Product Features

• Proprietary Automatic Exposure Detection with True OnePulse
• Fast and Superior Sensitivity(lower noise, higher signal)
• Nearly Zero EMI emissions for safe field operations
• Latest Detector Technologies
• Modular Form Factor to increase image size from 34 in. long to 51 in.
• Onboard image storage
• Thin Radiolucent Bottom Edge
• Exposure Anytime Technology
• Offline image capture and onboard storage
• Power on detector and expose(with or without acquire device-software)
• Automatically pushes images to tablet when available

• Long Range Wireless Control and Data
• Long Range wireless technologies
• Control Generator and Detector simultaneously
• Fast Image transfer and display
• Best Image Quality
• 16-Bit Dynamic range
• Low Dose Capable
• High-sensitivity mode to view dense objects
• Target-speci c multi-frequency image tuning algorithms

Cuattro Max^™ Software Features:

• Full XTK Integration with Direct Mosaic Input
• Complete Source Integration (5pin and 7pin versions) with Automated Adjustments
• Quick Set and Shoot workflow
• Cuattro True OnePulse Mode
• Complete set of Image tools with Advanced Multi-Frequency processing tools
• Multi- Detector Capable

17 in. x 34 in. Wireless Detector Specs:

• Model Name . . . . . . . . . . . . . . . . . . . . . M-DET-1734GWX-V1
• Detector TFT Type . . . . . . . . . . . . . . . . a-Si (Amorphous Silicon)
• Scintillator . . . . . . . . . . . . . . . . . . . . . . . .GadOx
• Pixel Pitch . . . . . . . . . . . . . . . . . . . . . . . . 140 micron
• Pixel Matrix . . . . . . . . . . . . . . . . . . . . . . . 3534 x 4302 pixels
• Image Size . . . . . . . . . . . . . . . . . . . . . . . 17" x 34"
• Active Area . . . . . . . . . . . . . . . . . . .430.08mm x 860.16mm
• Active Array . . . . . . . . . . . . . . . . . .3072 x 6144 pixels
• Effective Area . . . . . . . . . . . . . . . . .428.4mm x 855.4mm
• Effective Array . . . . . . . . . . . . . . . .3060 x 6110 pixels
• Grayscale . . . . . . . . . . . . . . . . . . . . . . . . . 16 bits
• Wireless Image Acquisition Time . . 6 second image preview/ 12 second nal image
• Online Image Storage . . . . . . . . . . . . Yes
• Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 8kg
• Batteries . . . . . . . . . . . . . . . . . . . . . . . . .2
• AED (Auto Exposure Control) . . . . . . Zero EMI Optical trigger
• Other Features . . . . . . . . . . . . . . . . . . . Accelerometer, Auto-orientation
